- General Information
- Manufacturer
- Socket Mobile, Inc
- Manufacturer Website Address
- http://www.socketmobile.com
- Brand Name
- Socket Mobile
- Product Line
- SocketScan
- Product Type
- Barcode Scanner

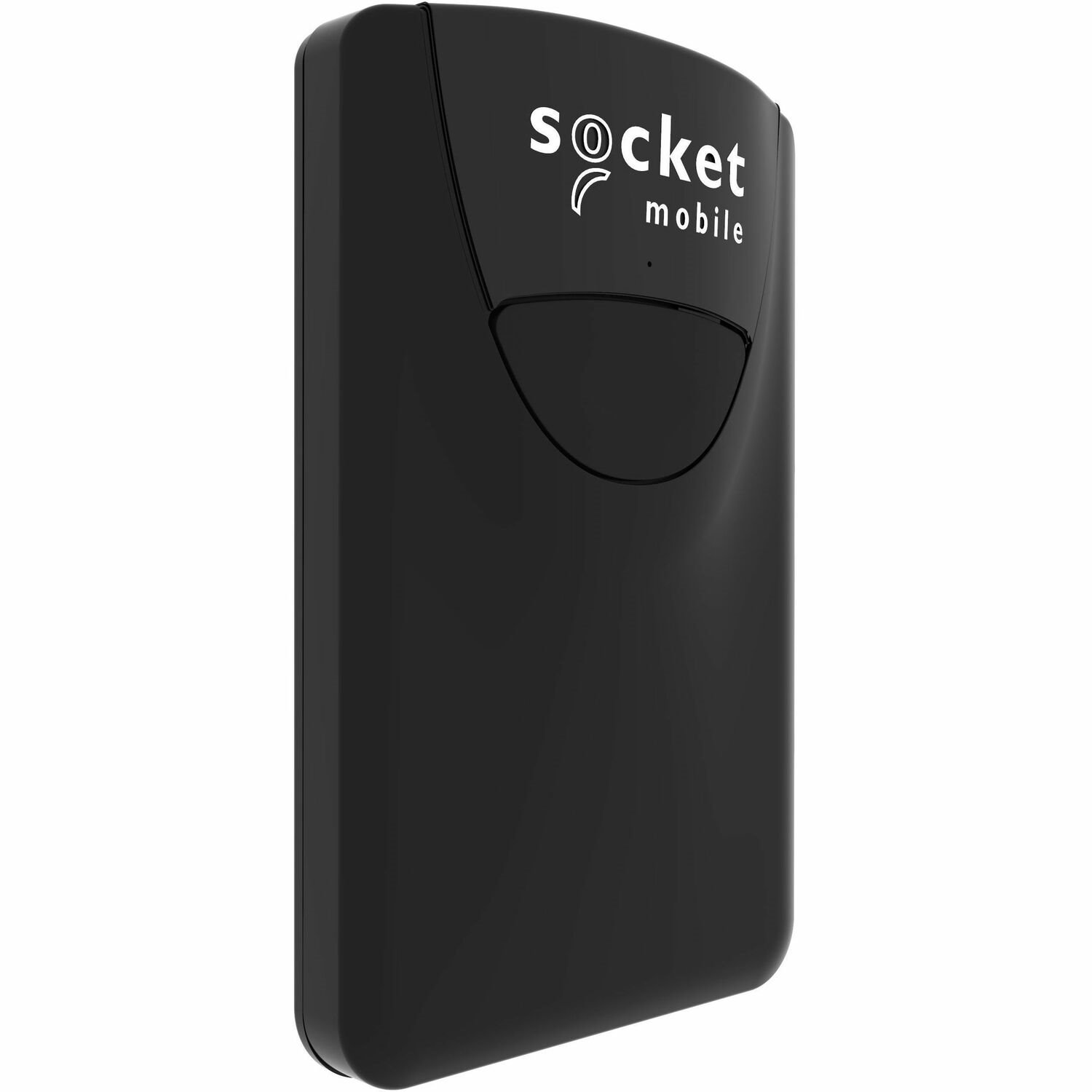

The Socket Mobile S840T(Taiwan)is a fast-scanning 2D/1D imager barcode scanner with Bluetooth wireless technology.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 2D
- Barcode Symbology Supported
1D:
Chinese 2 of 5, Codabar, Code 11, Code 16KCode 39, Code 93, Code 128, Discrete 2 of 5, EAN-13, EAN-8, GS1 Databar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, UPC A, UPC E1, Standard 2 of 5, UK Plessey
2D:
Aztec, Data Matrix, Han Xin, Micro PDF417, Micro QR Code, PDF417, QR Code
- Light Source
- LED
- Image Sensor Type
- Imager
- Scan Pattern
- Omni-directional
- Scanning Distance
- 381 mm
- Features
- Notification LED
- Scan Button
- Ergonomic Design
- Cable Type Included
- USB
- Field of View (Horizontal)
- 45°
- Field of View (Vertical)
- 34°
- Maximum Ambient Light
- 100000 lux
- Drop Specification
- 4 ft. drop to linoleum.
- Minimum Print Contrast
- 25%
- Maximum Element Resolution (Code 39)
- 0.13 mm
- Maximum Element Resolution (DataMatrix)
- 0.25 mm
- Network & Communication
- Bluetooth
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Battery Information
- Battery Chemistry
- Lithium Polymer (Li-Polymer)
- Battery Capacity
- 700 mAh
- Battery Weight
- 12.5 g
- Maximum Battery Run Time
- 25 Hour
- Maximum Battery Recharge Time
- 8 Hour
- Environmental Conditions
- Operating Temperature
- 0°C to 45°C
- Storage Temperature
- -40°C to 70°C
- Humidity (Non-condensing)
- 95%
- Physical Characteristics
- Form Factor
- Handheld
- Color Family
- Black
- Product Color
- Black
- Miscellaneous
- Package Contents
- SocketScan S840T Barcode Scanner
- Micro USB Charging Cable
- Rechargeable battery (pre-installed)
- Universal Klip
- User Guide in Chinese
- Taiwan approved certification labels
- Compatibility
Apple:
- iPhone
- iPad
- Application/Usage
- Warehouse
- Retail
- Hospitality
- Platform Supported
- iOS
- PC
- Android
- Country of Origin
- China
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
