- General Information
- Manufacturer
- Socket Mobile, Inc
- Manufacturer Website Address
- http://www.socketmobile.com
- Brand Name
- Socket Mobile
- Product Line
- XtremeScan Mag
- Marketing Information

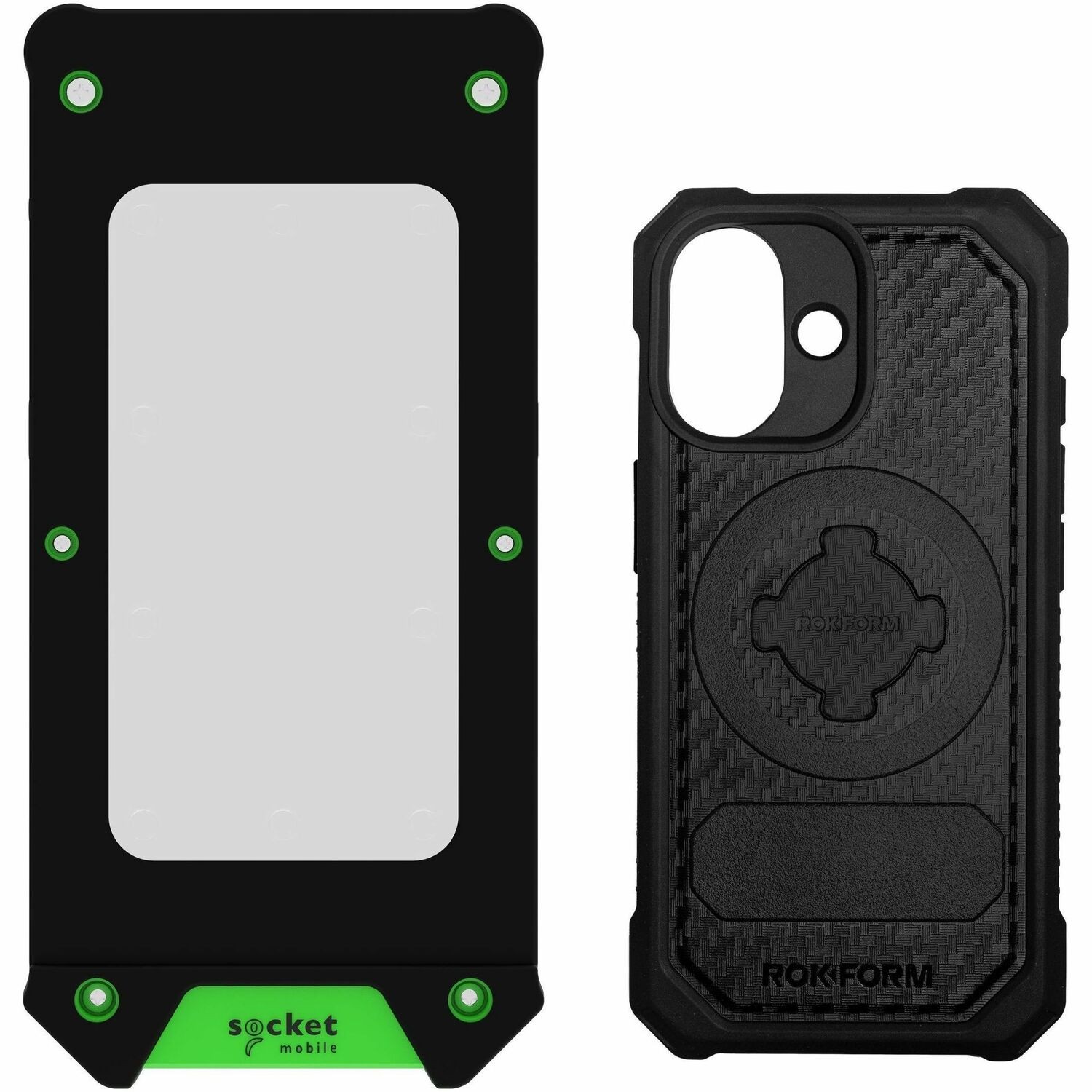

The XtremeScan Mag 662 delivers industrial-grade scanning performance in a compact Bring-Your-Own-Device (BYOD) design. Featuring a secure magnetic mounting system, the 662 enables workers to attach and detach their mobile device with ease while maintaining reliable mid-range 1D/2D barcode capture up to 14 feet away.
Built for field mobility and industrial reliability, the XtremeScan 662 combines a rugged mid-range barcode scanner with Socket Mobile's magnetic attachment system to create a powerful and flexible scanning solution. Ideal for warehousing, logistics, and field service teams, the 662 allows professionals to capture barcodes on shelves, pallets, or equipment with precision and speed while reducing downtime and increasing productivity.
With IP67-rated protection against dust, water, and rough handling, the 662 withstands the challenges of daily industrial use. The magnetic mounting system allows workers to easily switch between scanning and other mobile tasks while keeping their device secure. Bluetooth® LE connectivity ensures quick pairing, extended battery life, and consistent performance with iOS, Android, and Windows devices.
- Product Type
- Barcode Scanner
- Technical Information
- Connectivity Technology
- Cable/Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
Default Barcode Symbologies
- 1D Symbologies: Bookland Ean, Codabar, Code 128, Code 39, Code 93, Ean Jan 13, Ean Jan 8, Gs1 128, Gs1 Databar Expanded, Gs1 Databar Limited, Gs1 Databar Omnidirectional, Interleaved 2 5, Isbt 128 Udi, Trioptic, Upc A, Upc E
- 2D Symbologies: Aztec, Composite, Data Matrix, Dotcode, Gs1 Data Matrix, Gs1 Qr, Han Xin, Maxicode, Micropdf417, Micro Qr, Pdf417, Qr
- OCR Typeface: Ocr A, Ocr B
Supported Barcode Symbologies
- 1D Symbologies: Code 11, Matrix 2 5, Msi
- Postal Codes: Australia Post, Japan Postal, Mailmark, Netherlands Kix, Uk Postal, Us Planet, Us Postnet, Usps 4Cb One Intelligent Mail
- OCR Typeface: Micr E13b
- Light Source
- LED
- Scan Pattern
- Omni-directional
- Scanner Range
- Medium Range
- Scanning Distance
- 3.51 m
- Features
- Notification LED
- Field of View (Horizontal)
- 45°
- Field of View (Vertical)
- -34°
- Maximum Ambient Light
- 100000 lux
- Drop Specification
Standard:
- 10 ft. (3.1m) drop at room temperature per MIL-STD-810G
Freezer:
- 8 ft. (2.4m) drop to concrete across temperature per MIL-STD-810G
- 7 ft. (2.1m) drop to concrete across temperature per MIL-STD-810G.
- Minimum Print Contrast
- 20%
- Minimum Element Resolution (Code 39)
- 0.13 mm
- Maximum Element Resolution (Code 39)
- 2.54 mm
- Minimum Element Resolution (DataMatrix)
- 0.19 mm
- Maximum Element Resolution (DataMatrix)
- 4.06 mm
- Minimum Element Resolution (PDF417)
- 0.13 mm
- Maximum Element Resolution (PDF417)
- 0.17 mm
- Network & Communication
- Bluetooth
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Battery Information
- Battery Included
- Yes
- Battery Chemistry
- Lithium Polymer (Li-Polymer)
- Battery Capacity
- 1200 mAh
- Battery Weight
- 22 g
- Maximum Battery Recharge Time
- 7 Hour
- Environmental Conditions
- Operating Temperature
- 0°C to 45°C
- Storage Temperature
- -40°C to 70°C
- Humidity (Non-condensing)
- 95%
- Physical Characteristics
- Form Factor
- Countertop/Wall-mountable
- Rugged
- Yes
- Durability
- Dust Proof
- Water Proof
- Drop Resistant
- Miscellaneous
- Compatibility
Apple iPhone 17
- Ingress Protection (IP) Rating
- IP67
- Application/Usage
- Industrial
- Transportation
- Logistics
- Warehouse
- Baggage Handling
- Manufacturing
- Platform Supported
- Android
- iOS
- Windows
