Details:

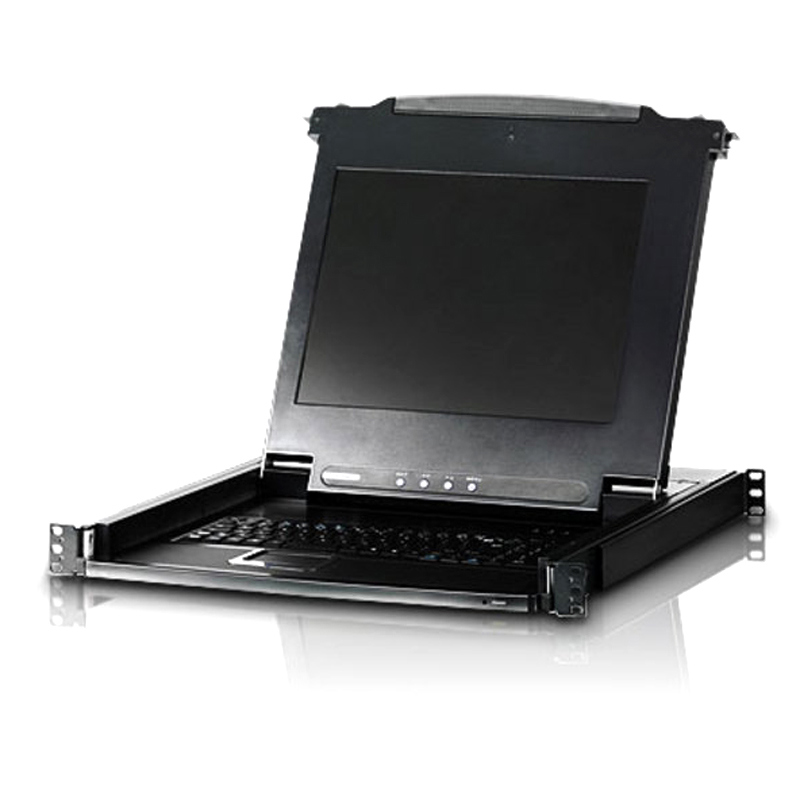

Aten CL-1000NA – Slideaway 19" LCD Console

The CL1000 is a KVM console module that serves as the front-end for standard KVM switches. The CL1000 features an integrated 19" LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing. Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch.

Aten48EOFY

Specifications:

• Connectors:
• KVM Ports - Keyboard/Video/Mouse: 1 x SPHD Female (Yellow)
• Power: 1 x 3-prong AC Socket
• Switches:
• LCD Adjustment: 4 x Pushbuttons
• Reset: 1 x Semi-recessed Pushbutton
• Power: 1 x Rocker
• LEDs:
• Power: 1 (Dark Green)
• Num Lock: 1 (Green)
• Caps Lock: 1 (Green)
• Scroll Lock: 1 (Green)
• Emulation - Keyboard/Mouse: PS/2
• Video: 1280 x 1024; DDC2B
• I/P Rating: 100 - 240 VAC; 50/60 Hz; 1A
• Power Consumption: 120V/21W; 230V/24W
• Environment:
• Operating Temp.: 0 ~ 40°C
• Storage Temp.: -20 ~ 60°C
• Humidity: 0 ~ 80% RH, Non-condensing
• Physical Properties:
• Housing: Metal+Plastic
• Weight: 12.30kg
• Dimensions (DxWxH): 53.40 x 48.00 x 4.40 x cm (1U)
• Package Contents:
• 1 x CL1000 with Standard Rack Mount Kit
• 1 x Custom KVM Cable Set
• 1 x Power Cord
• 1 x User Instructions
