Details:

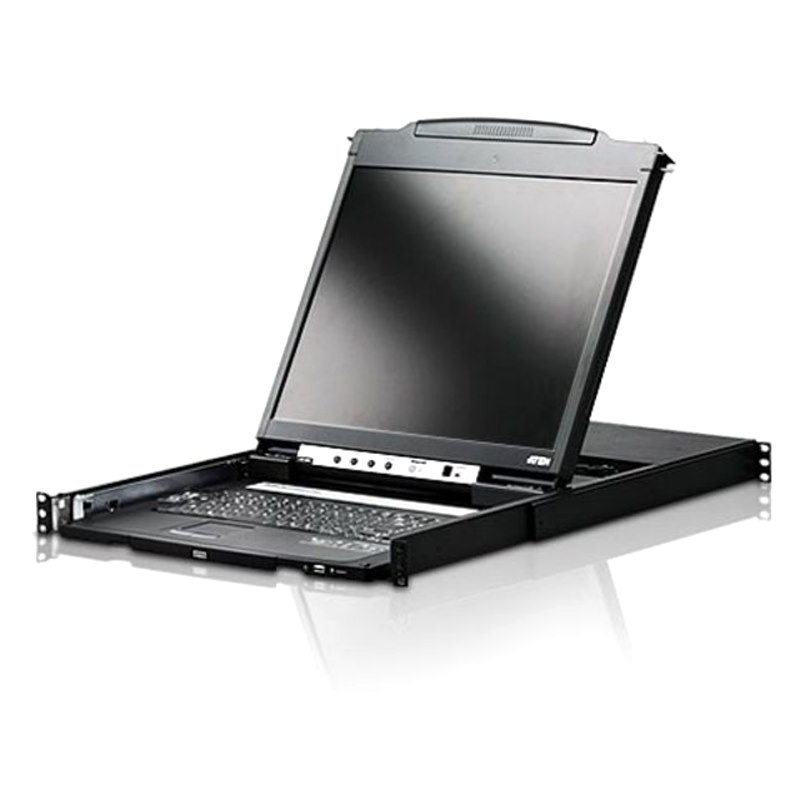

Aten CL-5800NA – Dual Rail LCD PS/2-USB Console

The CL5800 is a series of KVM Console modules featuring an integrated 19" LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing.

The CL5800's LCD and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.

For added convenience, ports for an external PS/2 or USB keyboard and mouse as well as a monitor are provided on the rear panel.

Specifications:

• Computer Connections: 1
• Console Selection: Hotkey
• Connectors:
• External Console Ports:
• Keyboard:
• 1 x 6-pin Mini-DIN Female (Purple)
• 1 x USB Type A Female (Black)
• Video: 1 x HDB-15 Female (Blue)
• Mouse:
• 1 x 6-pin Mini-DIN Female (Green)
• 1 x USB Type A Female (Black)
• KVM Ports: 1 x SPHD-18 Female (Yellow)
• USB Port: 1 x USB Type A Female (Black)
• FW Upgrade: 1 x RJ-11 Female (Black)
• Power: 1 x 3-prong AC Socket
• Switches:
• Reset: 1 x Semi-recessed Pushbutton
• Power: 1 x Rocker
• F/W Upgrade: 1 x Slide
• LCD Power: 1(Orange)
• LCD Adjustment: 4 x Pushbutton
• LEDs:
• Power: 1 (Dark Green)
• LCD Power: 1 x Pushbutton
• Lock:
• Num: 1 (Green)
• Caps: 1 (Green)
• Scroll: 1 (Green)
• Emulation - Keyboard/Mouse: PS/2, USB
• Video: 1280 x 1024 @ 75 Hz; DDC2B
• I/P Rating: 100-240VAC; 50–60Hz; 1A
• Power Consumption: 120V/27.4W; 230V/28.0W
• Environment:
• Operating Temp.: 0 ~ 50°C
• Storage Temp.: -20 ~ 60°C
• Humidity: 0 ~ 80% RH, Non-condensing
• Physical Properties:
• Housing: Metal
• Weight: 14.76 kg
• Dimensions (DxWxH): 68.04 x 48.00 x 4.40cm
• Package Contents:
• 1 x CL5800 Dual Rail LCD PS/2-USB Console with Standard Rack Mount Kit
• 1 x Custom KVM cable
• 1 x Power Cord
• 1 x Firmware Upgrade Cable
• 1 x User Instructions
