Details:

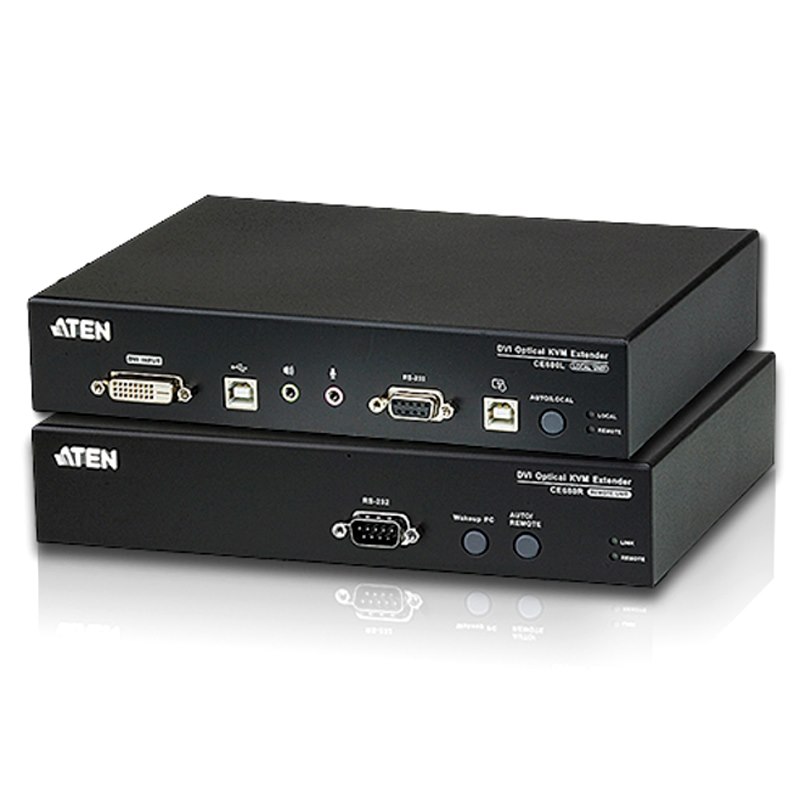

ATEN CE680 DVI Optical KVM Extender

The CE680 is a DVI Optical KVM Extender that overcomes the length restriction of standard DVI cables by using optical fiber to send high definition audio, video and control signals over long distance. It accepts audio-video stream from a local source and serializes the data to pass over a single 3.125 Gbps optical link (for resolutions up to 1920 x 1200 @ 60Hz, 24-bits).

It can also extend the keyboard/mouse remote control signals, as well as transfer RS-232 signals (up to 115 kbps) in both directions, allowing you to connect serial devices, such as barcode scanners. A USB port on the local and remote unit’s rear panel lets you connect a USB touchscreen panel device, which can access to a computer connected at the local site.

The CE680 allows access to a computer system from both local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE680 takes advantage of fiber optic cable technology for connecting the local and remote units, providing easy and quick installation and long-range extension of DVI signals.

Specifications:

• Connectors:
• KVM Ports CE680L:
• Video: 1 x DVI-D Female (White)
• Speaker: 1 x Mini Stereo Jack Female (Green)
• Mic.: 1 x Mini Stereo Jack Female (Pink)
• USB (KB / Mouse): 1 x USB Type B Female (White)
• USB (Touch Panel): 1 x USB Type B Female (White)
• Console Ports:
• Keyboard: 1 x USB Type A Female (White)
• Video: 1 x DVI-D Female (White)
• Mouse: 1 x USB Type A Female (White)
• Speaker: 1 x Mini Stereo Jack Female (Green)
• Mic.: 1 x Mini Stereo Jack Female (Pink)
• USB (Touch Panel): 1 x USB Type A Female (White)
• RS-232:
• CE680L: 1 x DB-9 Female (Black)
• CE680R: 1 x DB-9 Male (Black)
• Power: 1 x DC Jack (Black)
• Optical In/Out: 1 x bi-directional SFP (LC)
• LEDs CE680L:
• Local: 1 (Green)
• Remote: 1 (Green)
• Link: 1 (Green)
• LEDs CE680R:
• Remote: 1 (Green)
• Link: 1 (Green)
• Switches:
• Operation Mode Selection: 1 x Pushbutton
• CE680R Wakeup PC: 1 x Pushbutton
• Fiber Optics:
• Operating Distance*: 600 m with (SM) fiber
• Wavelength: 1310/1550 nm for SM
• Data rate: Single fiber: 3.125G bps
• Power Consumption:
• CE680L: DC5.3V, 10.2W
• CE680R: DC5.3V, 9.0W
• Environment:
• Operating Temp.: 0 ~ 50°C
• Storage Temp.: -20 ~ 60°C
• Humidity: 0 ~ 80% RH, Non-condensing
• Physical Properties:
• Housing: Metal
• Weight:
• CE680L: 1.10 kg
• CE680R: 1.08 kg
• Dimensions (LxWxH):
• CE680L:21.50 x 16.29 x 4.18cm
• CE680R:21.50 x 16.29 x 4.18cm
• Package Contents:
• 1x CE680L DVI Optical KVM Extender (Local Unit)
• 1x CE680R DVI Optical KVM Extender (Remote Unit)
• 1x Custom KVM Cable Set (1.8m)
• 1x USB Cable (1.8m)
• 2x Power Adapters
• 1x Mounting Kit
• 1x User Instructions
