Details:

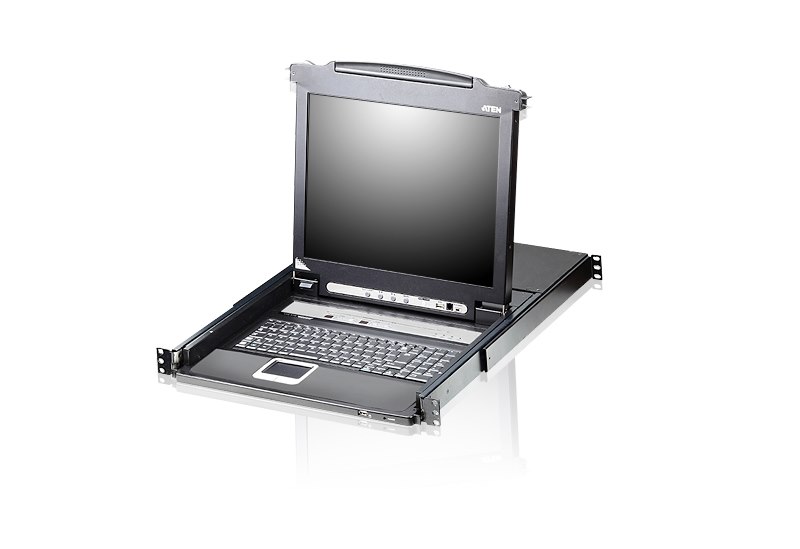

The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
Specifications:
Model Number : CL5708N
Connectors
- KVM Ports: 8 x SPHD-15/17 Female (Yellow)
- Daisy Chain Ports: 1 x DB-25 Male (Black)
- Firmware Upgrade: 1 x RJ-11 Female
- Power: 1 x 3-prong AC Socket
- USB Port:1 x USB Type-A Female
- External Mouse Port: 1 x USB Type-A Female (White)
- External Console Ports: 1 x SPHD-18 Male (Yellow)
Switches
- Reset: 1 x Semi-recessed Pushbutton
- Power: 1 x Rocker Switch
- Firmware Upgrade: 1 x Switch
- LCD Adjustment: 4x Pushbutton
- Station Selection: 2 x Pushbutton
- Port Selection 2 x Pushbutton
- LCD On/Off: 1 x LED Pushbutton (Orange)
- Port Selection: OSD, Hotkey, Pushbuttons
Computer Connections
- Maximum: 256 (via Daisy-chain)
- Direct: 8
LEDs
- Power: 1 (Dark Green)
- Lock: 1 x Num Lock (Green), 1 x Caps Lock (Green), 1 x Scroll Lock (Green)
- Station ID: 2 x 7-segment LED Display (Yellow)
- Port ID: 2 x 7-segment LED Display (Yellow)
- Online: 8 (Orange)
Panel Spec
- LCD Module: 19" TFT-LCD
- Pixel Pitch: 0.294 mm x 0.294 mm
- Support Color: 16.77M colors
- Contrast Ratio: 1000:1
- Luminance: 250 cd/m²
- Response time: 5 ms
- Viewing Angle: 170° (H), 160° (V)
Emulation
- Keyboard / Mouse: PS/2, USB
- Video: 1280 x 1024 @ 75 Hz; DDC2B
- Scan Interval: 1-255 sec.
- Maximum Input Power Rating: 100-240V AC, 50-60Hz, 1A
Power
- Consumption:120V/15.2W; 230V/16W
Environmental
- Operating Temperature: 0-50°C
- Storage Temperature: -20-60°C
- Humidity: 0-80% RH, Noncondensing
Physical Properties
- Housing: Metal + Plastic
- Weight: 13.39 kg ( 29.49 lb )
- Dimensions (L x W x H): 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)
Package Contents
- 1x CL5708 LCD KVM Switch with standard Rack Mount Kit
- 2x Custom KVM Cable Sets
- 1x 5-in-1 USB / PS/2 Console Cable
- 1x Firmware Upgrade Cable
- 1x Power Cord (AC Power Models)
- 1x User Instructions
