Details:

The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

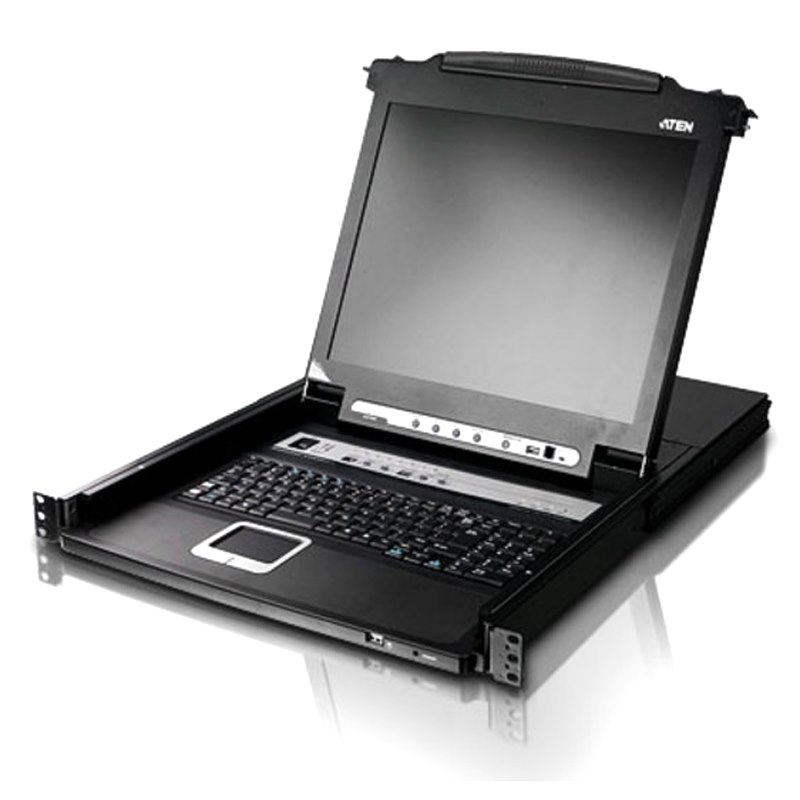

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Aten48EOFY

Specifications:

• Computer Connections:
• Direct: 8
• Max.: 256 (via Daisy-chain)
• Port Selection: OSD, Hotkey, Pushbutton
• Connectors:
• External Console Port: 1 x SPHD-18 Male (Yellow)
• External Mouse Port: 1 x USB Type-A Female (White)
• KVM Ports: 8 x SPHD-15/17 Female (Yellow)
• Daisy-chain Port: 1 x DB-25 Male (Black)
• FW Upgrade: 1 x RJ-11 Female
• Power: 1 x 3-prong AC Socket
• USB Port: 1 x USB Type-A Female (White)
• Switches:
• Reset: 1 x Semi-recessed Pushbutton
• Power: 1 x Rocker Switch
• Firmware Upgrade: 1 x Switch
• LCD Adjust: 4 x Pushbutton
• LCD On/Off: 1 x LED Pushbutton (Orange)
• Port Selection: 2 x Pushbutton
• Station Selection: 2 x Pushbutton
• LEDs:
• On Line: 8 (Orange)
• Port ID: 2 x 7-segment LED Display (Yellow)
• Station ID: 2 x 7-segment LED Display (Yellow)
• Power: 1 (Dark Green)
• Lock:
• Num Lock: 1 (Green)
• Caps Lock: 1 (Green)
• Scroll Lock: 1 (Green)
• Emulation - Keyboard/Mouse: PS/2, USB
• Video: 1280 x 1024 @ 75 Hz; DDC2B
• Scan Interval (OSD Select): 1-255 sec.
• I/P Rating: 100-240 V AC, 50/60 Hz, 1 A
• Power Consumption: 120V, 23.2W/230V, 24W
• Environment:
• Operating Temp.: 0 ~ 40°C
• Storage Temp.: -20 ~ 60°C
• Humidity: 0 ~ 80% RH, Noncondensing
• Physical Properties:
• Housing: Metal + Plastic
• Weight: 13.77 kg
• Dimensions (DxWxH): 63.40 x 48.00 x 4.40cm
• Package Contents:
• 1 x CL5708 LCD KVM Switch with standard Rack Mount Kit
• 2 x Custom KVM Cable Sets
• 1 x 5-in-1 USB / PS/2 Console Cable
• 1 x Firmware Upgrade Cable
• 1 x Power Cord (AC Power Models)
• 1 x User Instructions
